What is the IndyKite MCP Server?

The IndyKite MCP (Model Context Protocol) server enables AI agents and LLM applications to interact with IndyKite's authorization and data services. It provides a standardized interface for:

AuthZEN authorization: Make access control decisions (evaluate, search resources, search actions).
ContX IQ (CIQ): Execute knowledge queries to read and write graph data.
Resource discovery: List available knowledge queries with agent-friendly descriptions.

The server implements the Model Context Protocol specification, making it compatible with MCP-enabled AI tools and agents.

What is the MCP URL?

The MCP server is available in two regions:

EU: https://eu.mcp.indykite.com
US: https://us.mcp.indykite.com

Full endpoint URL:

<MCP_REGIONAL_URL>/mcp/v1/<project_gid>

Replace <project_gid> with your IndyKite project GID.

What do I need before using the MCP server?

Prerequisites

IndyKite environment: Project, Application, Application Agent, and Application Agent credentials.
- See: Environment Setup Example
Token Introspect configuration: Required to validate user access tokens.
- See: Token Introspect Guide
Project GID: Your IndyKite project identifier.
Data and policies: Captured data, KBAC policies, and/or CIQ policies and Knowledge Queries.
- See: MCP Example

How do I authenticate with the MCP server?

The MCP server requires two layers of authorization:

Layer 1: API Key (X-IK-ClientKey)

This authenticates your application to the IndyKite platform.

Header: X-IK-ClientKey: <AppAgent-token>
Source: AppAgent credentials token
Required permissions: Authorization API and ContX IQ API
Recommendation: Use a short validity period for security

Create credentials: POST /application-agent-credentials

Layer 2: Bearer Token (Authorization)

This identifies the user (subject) making the request.

Header: Authorization: Bearer <user-access-token>
Source: OAuth 2.0 access token from your identity provider
Validation: Token is introspected using your Token Introspect configuration
Purpose: Used as the subject in authorization decisions

Configure token introspection: POST /token-introspects

What happens without a Bearer token?

If you call the MCP server without a Bearer token, it returns:

401 Unauthorized status
.well-known/oauth-protected-resource metadata (per RFC9728)

Note: Contact IndyKite to have your identity providers and scopes added to the .well-known/oauth-protected-resource file for your project.

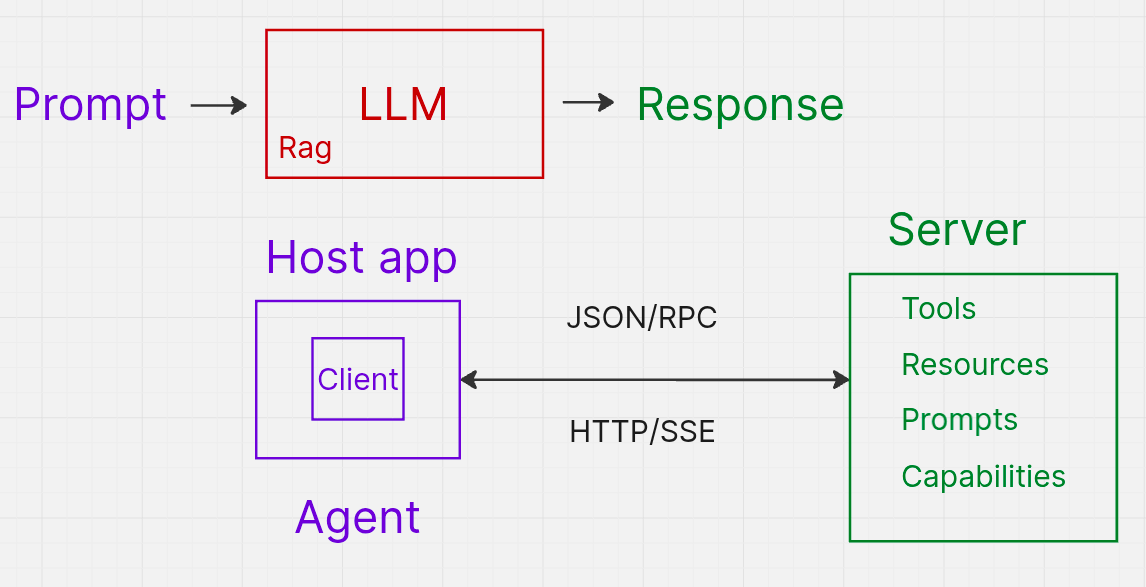

How does the MCP session work?

The MCP server uses JSON-RPC over HTTP POST:

Initialize: Send an initialize request to start a session.
Receive Session ID: The server returns an Mcp-Session-Id header.
Include Session ID: All subsequent requests must include the Mcp-Session-Id header.

The server is built using the official MCP Go SDK, so you can also use Go SDK clients to interact with it.

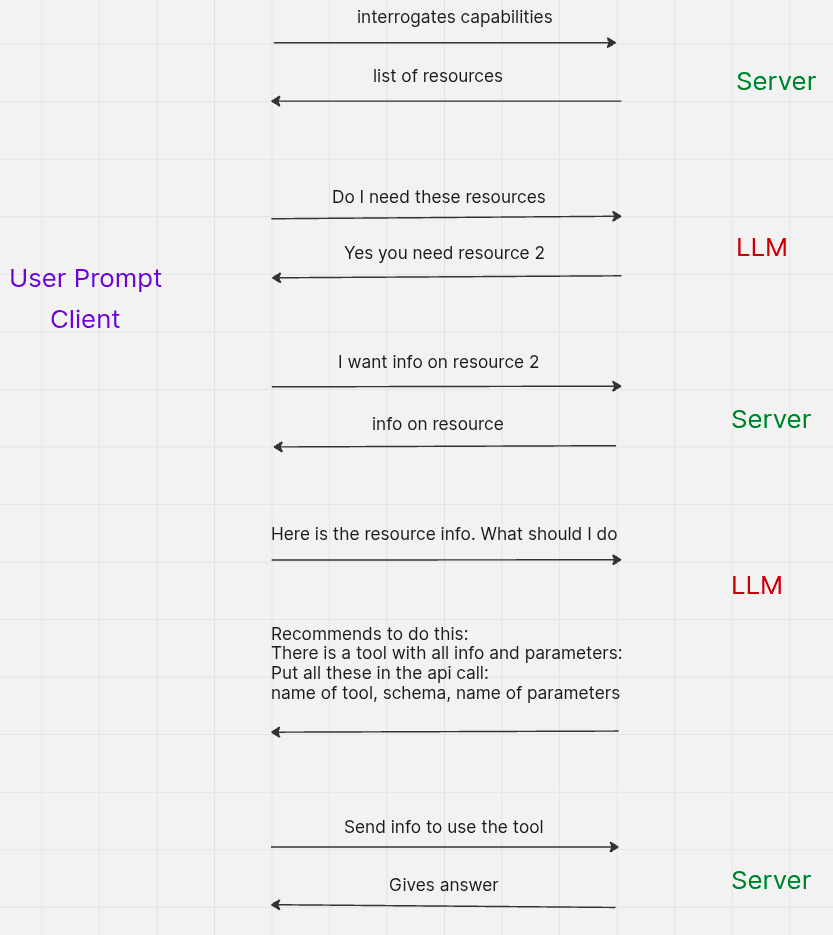

What is the MCP process flow?

How do I make MCP requests?

Step 1: Initialize the MCP session

Start a new MCP session and receive a session ID.

curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-d '{
      "jsonrpc": "2.0",
      "id": 1,
      "method": "initialize",
      "params": {
        "protocolVersion": "2025-11-25",
        "capabilities": {},
        "clientInfo": {"name": "curl", "version": "1.0"}
      }
    }'

Response: Returns Mcp-Session-Id header. Save this for subsequent requests.

What happens without a Bearer token?

curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "X-IK-ClientKey: $API_KEY"
-d '{
      "jsonrpc": "2.0",
      "id": 1,
      "method": "initialize",
      "params": {
        "protocolVersion": "2025-11-25",
        "capabilities": {},
        "clientInfo": {"name": "curl", "version": "1.0"}
      }
    }'

Response: Returns 401 Unauthorized and .well-known/oauth-protected-resource metadata.

Step 2: Confirm initialization

Verify the session is initialized.

curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-d '{
      "jsonrpc": "2.0",
      "id": 1,
      "method": "notifications/initialized",
      "params": {
        "protocolVersion": "2025-11-25",
        "capabilities": {},
        "clientInfo": {"name": "curl", "version": "1.0"}
      }
    }'

How do I discover available resources and tools?

List MCP resources

Discover what resources are available in the MCP server.

curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-d '{
      "jsonrpc": "2.0",
      "id": 2,
      "method": "resources/list",
      "params": {}
    }'

List MCP tools

Discover what tools are available for the AI agent to call.

curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-d '{
      "jsonrpc": "2.0",
      "id": 3,
      "method": "tools/list",
      "params": {}
    }'

List Knowledge Queries

Get a list of available CIQ Knowledge Queries with agent-friendly descriptions.

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-d '{
      "jsonrpc": "2.0",
      "id": 4,
      "method": "resources/read",
      "params": {
        "uri": "indykite://knowledge-queries/"
      }
    }'

Response: Returns list of Knowledge Query IDs and descriptions, formatted for AI agents to understand how to call the ciq_execute tool.

What tools are available?

AuthZEN Tools

These tools make authorization decisions based on KBAC policies.

Tool	Description
`authzen_evaluate`	Check if a subject can perform an action on a resource
`authzen_evaluations`	Batch evaluate multiple authorization requests
`authzen_search_resource`	Find all resources a subject can access with a given action
`authzen_search_action`	Find all actions a subject can perform on a resource

CIQ Tools

Tool	Description
`ciq_execute`	Execute a Knowledge Query to read or write graph data

How do I use the AuthZEN tools?

authzen_evaluate: Single authorization check

Check if a subject can perform a specific action on a resource.

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
# random values to adapt in arguments
# subject_id is Bearer token sub
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-H "X-IndyKite-Base-URL: $BASE_URL"
-d '{
      "jsonrpc": "2.0",
      "id": 5,
      "method": "tools/call",
      "params": {
        "name": "authzen_evaluate",
        "arguments": {
          "subject_type": "Person",
          "subject_id": "alice",
          "resource_type": "Car",
          "resource_id": "cadillacv16",
          "action_name": "CAN_DRIVE"
        }
      }
    }'

authzen_evaluations: Batch authorization checks

Evaluate multiple authorization requests in a single call.

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
# random values to adapt in arguments
# subject_id is Bearer token sub
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-H "X-IndyKite-Base-URL: $BASE_URL"
-d '{
      "jsonrpc": "2.0",
      "id": 6,
      "method": "tools/call",
      "params": {
        "name": "authzen_evaluations",
        "arguments": {
          "subject_type": "user",
          "subject_id": "user-123",
          "evaluations": [
            {"action": {"name": "read"}, "resource": {"type": "doc", "id": "doc1"}},
            {"action": {"name": "write"}, "resource": {"type": "doc", "id": "doc2"}}
          ]
        }
      }
    }'

authzen_search_resource: Find accessible resources

Find all resources of a given type that a subject can access with a specific action.

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
# random values to adapt in arguments
# subject_id is Bearer token sub
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-H "X-IndyKite-Base-URL: $BASE_URL"
-d '{
      "jsonrpc": "2.0",
      "id": 7,
      "method": "tools/call",
       "params": {
        "name": "authzen_search_resource",
        "arguments": {
          "subject_type": "User",
          "subject_id": "user-123",
          "action_name": "READ",
          "resource_type": "Document"
        }
      }
    }'

authzen_search_action: Find permitted actions

Find all actions a subject can perform on a specific resource.

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
# random values to adapt in arguments
# subject_id is Bearer token sub
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-H "X-IndyKite-Base-URL: $BASE_URL"
-d '{
      "jsonrpc": "2.0",
      "id": 8,
      "method": "tools/call",
      "params": {
        "name": "authzen_search_action",
        "arguments": {
          "subject_type": "User",
          "subject_id": "user-123",
          "resource_type": "Document",
          "resource_id": "doc-456"
        }
      }
    }'

How do I use the CIQ tool?

ciq_execute: Run a Knowledge Query

Execute a CIQ Knowledge Query to read or write data in the Identity Knowledge Graph.

# BASE_URL= https://eu.api.indykite.com or https://us.api.indykite.com
# random keys/values to adapt in input_params
curl -v -i -X POST <MCP_URL>/mcp/v1/<project_gid>
-H "Content-Type: application/json"
-H "Authorization: Bearer $BEARER_TOKEN"
-H "X-IK-ClientKey: $API_KEY"
-H "Mcp-Session-Id: $SESSION_ID"
-H "X-IndyKite-Base-URL: $BASE_URL"
-d '{
      "jsonrpc": "2.0",
      "id": 9,
      "method": "tools/call",
      "params": {
        "name": "ciq_execute",
        "arguments": {
          "id": ",
          "input_params": {"license": "AL98745", "app_external_id": "applicationParking"}
        }
      }
    }'

What arguments does ciq_execute need?

Argument	Description
`id`	The GID or name of the Knowledge Query to execute
`input_params`	Key-value pairs for partial filter variables defined in the query

Tip: Use the resources/read method with URI indykite://knowledge-queries/ to get agent-friendly descriptions of available queries and their required parameters.

Next Steps

MCP example: MCP Resource Example
Environment setup: Environment Setup
AuthZEN guide: AuthZEN Guide
CIQ guide: ContX IQ Guide
Token Introspect: Token Introspect Guide
MCP specification: Model Context Protocol
Go SDK: MCP Go SDK
