ContX IQ: Role-Based Access Control with User Tokens and Organizations

Advanced scenario using user access tokens as subjects for role-based authorization. Members can read Events, Admins can create Events. Demonstrates Token Introspect integration with ContX IQ policies.

ContX IQ: Role-Based Access Control with User Tokens and Organizations

This advanced example combines Token Introspect with ContX IQ for user-based authorization:

Key concepts:

1. User access tokens (from IdP) become subjects in ContX IQ queries

2. Token Introspect creates User nodes linked to UserProfile nodes

3. UserProfiles have roles (Member, Admin) in Organizations

4. Policies scope access based on role

Workflow:

1. Introspect user tokens to create User nodes

2. Link Users to UserProfiles with roles

3. Member role: Can READ Events in their Organization

4. Admin role: Can CREATE new Events in their Organization

This pattern enables multi-tenant, role-based access control.

Use case

Scenario: Event management platform with role-based permissions.

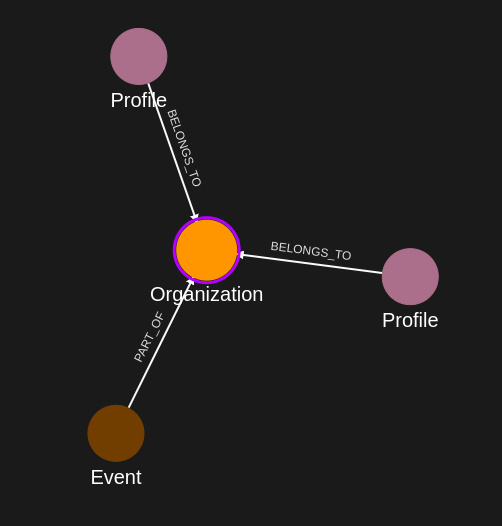

Organization structure:

- Organization1

- UserProfile(Alice) with role: "Member"

- UserProfile(Bob) with role: "Admin"

- Event1, Event2 (existing events)

User authentication:

- Alice logs in -> Token introspected -> User(alice-token) created

- Bob logs in -> Token introspected -> User(bob-token) created

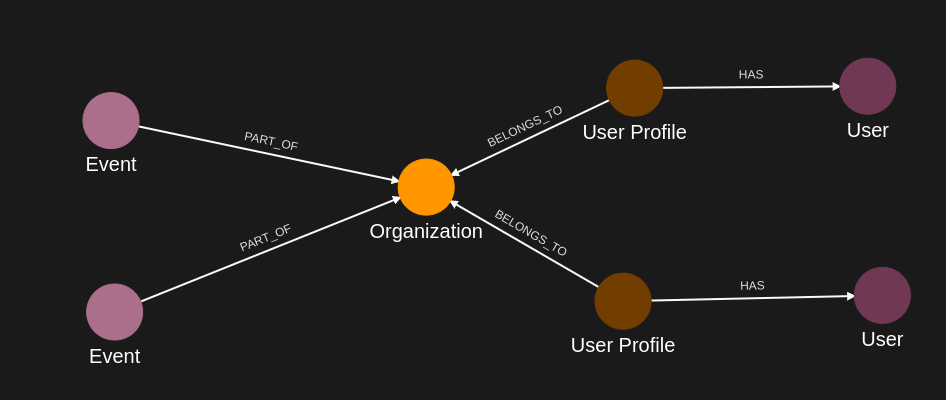

Graph after token introspection:

User(alice-token) -[_SAME_AS]-> UserProfile(Alice) -[MEMBER_OF {role:"Member"}]-> Organization1

User(bob-token) -[_SAME_AS]-> UserProfile(Bob) -[MEMBER_OF {role:"Admin"}]-> Organization1

Organization1 -[HAS]-> Event1, Event2

Authorization results:

- Alice (Member): Can READ Event1, Event2. Cannot CREATE events.

- Bob (Admin): Can READ Event1, Event2. Can CREATE Event3.

ikg

Requirements

Prerequisites:

- ServiceAccount credentials: For creating policies and queries (Bearer token)

- AppAgent credentials: For data ingestion and query execution (X-IK-ClientKey)

- User access tokens: JWT tokens for users (Alice, Bob) from your IdP

- Token Introspect configuration: Set up to validate your IdP's tokens

How user tokens are used:

- Pass user token in Authorization header: "Bearer {user_access_token}"

- Token Introspect validates and creates/updates User node

- User node becomes the subject for policy evaluation

Steps

Step 1: Ingest Organization and Event Data

- Authentication: AppAgent credential (X-IK-ClientKey header)

- Action: POST nodes: Organization, UserProfile (with roles), Event nodes

- Action: POST relationships: MEMBER_OF (with role property), HAS

- Result: Organization structure ready

Step 2: Create User Linking Policy

- Authentication: ServiceAccount credential (Bearer token)

- Action: POST policy allowing:

- READ on Subject nodes (for token introspection)

- UPSERT on User nodes (created from tokens)

- UPSERT on _SAME_AS relationships (User -> UserProfile)

- Result: Policy ID returned

Step 3: Create User Linking Query

- Authentication: ServiceAccount credential (Bearer token)

- Action: POST query that links introspected User to matching UserProfile

- Result: Query ID returned

Step 4: Execute with Alice's Token

- Authentication: AppAgent credential + Alice's user token (Bearer header)

- Action: POST to /contx-iq/v1/execute

- Result: User(alice) created and linked to UserProfile(Alice)

Step 5: Execute with Bob's Token

- Authentication: AppAgent credential + Bob's user token (Bearer header)

- Action: POST to /contx-iq/v1/execute

- Result: User(bob) created and linked to UserProfile(Bob)

Step 6: Create Role-Based Read Policy

- Authentication: ServiceAccount credential (Bearer token)

- Action: POST policy allowing Users to READ Events through:

User -[_SAME_AS]-> UserProfile -[MEMBER_OF]-> Organization -[HAS]-> Event

- Role filter: Applies to both "Member" and "Admin" roles

- Result: Policy ID returned

Step 7: Create Event Read Query

- Authentication: ServiceAccount credential (Bearer token)

- Action: POST query that reads Events for the authenticated user

- Result: Query ID returned

Step 8: Execute Read as Alice (Member)

- Authentication: AppAgent credential + Alice's token

- Action: POST to /contx-iq/v1/execute

- Result: Event1, Event2 returned (Alice can read events)

Step 9: Create Admin Write Policy

- Authentication: ServiceAccount credential (Bearer token)

- Action: POST policy allowing Users with Admin role to CREATE Events:

User -[_SAME_AS]-> UserProfile -[MEMBER_OF {role:"Admin"}]-> Organization

- Role filter: Only "Admin" role can upsert

- Result: Policy ID returned

Step 10: Create Event Write Query

- Authentication: ServiceAccount credential (Bearer token)

- Action: POST query that creates new Event and links to Organization

- Parameters: $eventId, $eventName

- Result: Query ID returned

Step 11: Execute Write as Bob (Admin)

- Authentication: AppAgent credential + Bob's token

- Action: POST to /contx-iq/v1/execute with event parameters

- Result: Event3 created and linked to Organization1

Step 1

Capture the nodes needed for this use case.

POST https://eu.api.indykite.com/capture/v1/nodes/Json
{
  "nodes": [
    {
      "external_id": "alice",
      "type": "UserProfile",
      "properties": [
        {
          "type": "email",
          "value": "alice@email.com"
        }
      ]
    },
    {
      "external_id": "bob",
      "type": "UserProfile",
      "properties": [
        {
          "type": "email",
          "value": "bob@email.com"
        }
      ]
    },
    {
      "external_id": "org1",
      "type": "Organization",
      "properties": [
        {
          "type": "name",
          "value": "Org1"
        }
      ]
    },
    {
      "external_id": "event_lambda",
      "type": "Event",
      "labels": [],
      "is_identity": false,
      "properties": [
        {
          "type": "title",
          "value": "Event Lambda",
          "metadata": {
            "assurance_level": 1,
            "source": "Some Source",
            "verified_time": "2024-04-10T06:28:16Z"
          }
        },
        {
          "type": "startDate",
          "value": "2025-01-01",
          "metadata": {
            "assurance_level": 1,
            "source": "Some Source",
            "verified_time": "2025-04-10T06:28:16Z"
          }
        },
        {
          "type": "link",
          "value": "https://events.com",
          "metadata": {
            "assurance_level": 1,
            "source": "Some Source",
            "verified_time": "2025-04-10T06:28:16Z"
          }
        },
        {
          "type": "description",
          "value": "Description ...",
          "metadata": {
            "assurance_level": 1,
            "source": "Some Source",
            "verified_time": "2025-04-10T06:28:16Z"
          }
        }
      ]
    }
  ]
}

Capture the relationships needed for this use case.

POST https://eu.api.indykite.com/capture/v1/relationships/Json
{
  "relationships": [
    {
      "source": {
        "external_id": "alice",
        "type": "UserProfile"
      },
      "target": {
        "external_id": "org1",
        "type": "Organization"
      },
      "type": "BELONGS_TO",
      "properties": [
        {
          "type": "role",
          "value": "Member"
        }
      ]
    },
    {
      "source": {
        "external_id": "bob",
        "type": "UserProfile"
      },
      "target": {
        "external_id": "org1",
        "type": "Organization"
      },
      "type": "BELONGS_TO",
      "properties": [
        {
          "type": "role",
          "value": "Admin"
        }
      ]
    },
    {
      "source": {
        "external_id": "event_lambda",
        "type": "Event"
      },
      "target": {
        "external_id": "org1",
        "type": "Organization"
      },
      "type": "PART_OF"
    }
  ]
}

Step 2

Create a CIQ Policy which designates the Subject nodes can be read,

the User nodes can be upserted and relationships between User and UserProfile can be upserted.

policy.jsonJson
{
  "meta": {
    "policy_version": "1.0-ciq"
  },
  "subject": {
    "type": "UserProfile"
  },
  "condition": {
    "cypher": "MATCH (subject:UserProfile)",
    "filter": [
      {
        "operator": "=",
        "attribute": "subject.external_id",
        "value": "$subject_external_id"
      }
    ]
  },
  "allowed_reads": {
    "nodes": [
      "subject",
      "subject.*"
    ]
  },
  "allowed_upserts": {
    "nodes": {
      "node_types": [
        "User"
      ]
    },
    "relationships": {
      "relationship_types": [
        {
          "type": "HAS",
          "source_node_label": "UserProfile",
          "target_node_label": "User"
        }
      ]
    }
  }
}

Request to create the CIQ Policy configuration using REST.

POST https://eu.api.indykite.com/configs/v1/authorization-policiesJson
{
  "project_id": "your_project_gid",
  "description": "description of policy",
  "display_name": "policy name",
  "name": "policy-name",
  "policy": "{\"meta\":{\"policy_version\":\"1.0-ciq\"},\"subject\":{\"type\":\"UserProfile\"},\"condition\":{\"cypher\":\"MATCH (subject:UserProfile)\",\"filter\":[{\"operator\":\"=\",\"attribute\":\"subject.external_id\",\"value\":\"$subject_external_id\"}]},\"allowed_reads\":{\"nodes\":[\"subject\",\"subject.*\"]},\"allowed_upserts\":{\"nodes\":{\"node_types\":[\"User\"]},\"relationships\":{\"relationship_types\":[{\"type\":\"HAS\",\"source_node_label\":\"UserProfile\",\"target_node_label\":\"User\"}]}}}",
  "status": "ACTIVE",
  "tags": []
}

Request to read the CIQ Policy configuration using REST.

policy_request.jsonJson
{
  "id": "your_policy_configuration_gid"
}

Step 3

Create a CIQ Query in the context of the policy to retrieve and upsert the data.

knowledge_query.jsonJson
{
  "nodes": [
    "subject",
    "subject.property.email",
    "user.property.email"
  ],
  "relationships": [],
  "upsert_nodes": [
    {
      "name": "user",
      "type": "User",
      "external_id": "$token.sub",
      "properties": [
        {
          "type": "email",
          "value": "$email"
        }
      ]
    }
  ],
  "upsert_relationships": [
    {
      "name": "has",
      "source": "subject",
      "target": "user",
      "type": "HAS"
    }
  ]
}

Request to create a CIQ Query configuration using REST.

POST https://eu.api.indykite.com/configs/v1/knowledge-queriesJson
{
  "project_id": "your_project_gid",
  "description": "description of knowledge query",
  "display_name": "knowledge query name",
  "name": "knowledge-query-name",
  "policy_id": "your_policy_gid",
  "query": "{\"nodes\":[\"subject\",\"subject.property.email\",\"user.property.email\"],\"relationships\":[],\"upsert_nodes\":[{\"name\":\"user\",\"type\":\"User\",\"external_id\":\"$token.sub\",\"properties\":[{\"type\":\"email\",\"value\":\"$email\"}]}],\"upsert_relationships\":[{\"name\":\"has\",\"source\":\"subject\",\"target\":\"user\",\"type\":\"HAS\"}]}",
  "status": "ACTIVE"
}

Read the CIQ Query Configuration.

GET https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Step 4

Run a CIQ Execution to create a User node from the first access token and link it to the corresponding UserProfile.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "knowledge_query_gid",
  "input_params": {
    "subject_external_id": "alice",
    "user_external_id": "alice_user_external_id",
    "email": "alice@email.com"
  },
  "page_token": 1
}

CIQ Execution response.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "subject": {
          "Id": 14,
          "ElementId": "4:0f1c76a0-92f1-4474-80af-aa4c317e636a:14",
          "Labels": [
            "Unique",
            "Resource",
            "UserProfile"
          ],
          "Props": {
            "_service": "capture-api",
            "create_time": "2025-06-13T16:08:25.47Z",
            "external_id": "alice",
            "id": "4H1gEySmTGasbkjWDyyuXg",
            "type": "UserProfile",
            "update_time": "2025-06-13T16:08:25.47Z"
          }
        },
        "subject.property.email": "alice@email.com",
        "user.property.email": "alice@email.com"
      }
    }
  ]
}

Step 5

Run a CIQ Execution to create a User node from the second access token and link it to the corresponding UserProfile.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "knowledge_query_gid",
  "input_params": {
    "subject_external_id": "bob",
    "user_external_id": "bob_user_external_id",
    "email": "bob@email.com"
  },
  "page_token": 1
}

CIQ Execution response.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "subject": {
          "Id": 15,
          "ElementId": "4:0f1c76a0-92f1-4474-80af-aa4c317e636a:15",
          "Labels": [
            "Unique",
            "Resource",
            "UserProfile"
          ],
          "Props": {
            "_service": "capture-api",
            "create_time": "2025-06-13T16:08:25.47Z",
            "external_id": "bob",
            "id": "lIHALUiJSSiwVCff51KxxA",
            "type": "UserProfile",
            "update_time": "2025-06-13T16:08:25.47Z"
          }
        },
        "subject.property.email": "bob@email.com",
        "user.property.email": "bob@email.com"
      }
    }
  ]
}

Step 6

Create a CIQ Policy which designates the nodes which are allowed to read the Event nodes linked to the Organization nodes they have a relationship with, according to a specific role.

policy.jsonJson
{
  "meta": {
    "policy_version": "1.0-ciq"
  },
  "subject": {
    "type": "UserProfile"
  },
  "condition": {
    "cypher": "MATCH (user:User)<-[:HAS]-(subject:UserProfile)-[bt:BELONGS_TO]->(org:Organization)<-[:PART_OF]-(event:Event)",
    "filter": [
      {
        "operator": "AND",
        "operands": [
          {
            "operator": "=",
            "attribute": "subject.external_id",
            "value": "$subject_external_id"
          },
          {
            "operator": "=",
            "attribute": "user.external_id",
            "value": "$token.sub"
          },
          {
            "operator": "=",
            "attribute": "bt.role",
            "value": "Member"
          }
        ]
      }
    ]
  },
  "allowed_reads": {
    "nodes": [
      "event",
      "event.*",
      "org.external_id",
      "subject.property.name"
    ]
  }
}

Json to create the CIQ Policy configuration using REST.

POST https://eu.api.indykite.com/configs/v1/authorization-policiesJson
{
  "project_id": "your_project_gid",
  "description": "description of policy",
  "display_name": "policy name",
  "name": "policy-name",
  "policy": "{\"meta\":{\"policy_version\":\"1.0-ciq\"},\"subject\":{\"type\":\"UserProfile\"},\"condition\":{\"cypher\":\"MATCH (user:User)<-[:HAS]-(subject:UserProfile)-[bt:BELONGS_TO]->(org:Organization)<-[:PART_OF]-(event:Event)\",\"filter\":[{\"operator\":\"AND\",\"operands\":[{\"operator\":\"=\",\"attribute\":\"subject.external_id\",\"value\":\"$subject_external_id\"},{\"operator\":\"=\",\"attribute\":\"user.external_id\",\"value\":\"$token.sub\"},{\"operator\":\"=\",\"attribute\":\"bt.role\",\"value\":\"Member\"}]}]},\"allowed_reads\":{\"nodes\":[\"event\",\"event.*\",\"org.external_id\",\"subject.property.name\"]}}",
  "status": "ACTIVE",
  "tags": []
}

Json to read the CIQ Policy configuration using REST.

policy_request.jsonJson
{
  "id": "your_policy_configuration_gid"
}

Step 7

Create a CIQ Query in the context of the policy to retrieve data.

knowledge_query.jsonJson
{
  "nodes": [
    "event"
  ],
  "filter": {
    "attribute": "subject.property.email",
    "operator": "=",
    "value": "$email"
  }
}

Json to create a CIQ Query configuration using REST.

POST https://eu.api.indykite.com/configs/v1/knowledge-queriesJson
{
  "project_id": "your_project_gid",
  "description": "description of knowledge query",
  "display_name": "knowledge query name",
  "name": "knowledge-query-name",
  "policy_id": "your_policy_gid",
  "query": "{\"nodes\":[\"event\"],\"filter\":{\"attribute\":\"subject.property.email\",\"operator\":\"=\",\"value\":\"$email\"}}",
  "status": "ACTIVE"
}

Read the CIQ Query Configuration.

GET https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Step 8

Run a CIQ Execution to read the data.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "knowledge_query_gid",
  "input_params": {
    "email": "alice@email.com",
    "subject_external_id": "alice"
  },
  "page_token": 1
}

CIQ Execution response.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "event": {
          "Id": 8,
          "ElementId": "4:0f1c76a0-92f1-4474-80af-aa4c317e636a:8",
          "Labels": [
            "Unique",
            "Resource",
            "Event"
          ],
          "Props": {
            "_service": "capture-api",
            "create_time": "2025-06-13T16:08:11.293Z",
            "external_id": "event_lambda",
            "id": "ABeHsubWR7a3Yj0lOSuKRA",
            "type": "Event",
            "update_time": "2025-06-13T16:08:11.293Z"
          }
        }
      }
    }
  ]
}

Step 9

Create a CIQ Policy which designates the nodes which are allowed to upsert Event nodes linked to the Organization nodes they have a relationship with, according to a specific role.

policy.jsonJson
{
  "meta": {
    "policy_version": "1.0-ciq"
  },
  "subject": {
    "type": "UserProfile"
  },
  "condition": {
    "cypher": "MATCH (user:User)<-[:HAS]-(subject:UserProfile)-[bt:BELONGS_TO]->(org:Organization)",
    "filter": [
      {
        "operator": "AND",
        "operands": [
          {
            "operator": "=",
            "attribute": "subject.external_id",
            "value": "$profile_external_id"
          },
          {
            "operator": "=",
            "attribute": "$token.sub",
            "value": "$user_external_id"
          },
          {
            "operator": "=",
            "attribute": "bt.role",
            "value": "Admin"
          }
        ]
      }
    ]
  },
  "allowed_reads": {
    "nodes": [
      "org.external_id",
      "subject.property.name"
    ]
  },
  "allowed_upserts": {
    "nodes": {
      "node_types": [
        "Event"
      ]
    },
    "relationships": {
      "relationship_types": [
        {
          "type": "PART_OF",
          "source_node_label": "Event",
          "target_node_label": "Organization"
        }
      ]
    }
  }
}

Json to create the CIQ Policy configuration using REST.

POST https://eu.api.indykite.com/configs/v1/authorization-policiesJson
{
  "project_id": "your_project_gid",
  "description": "description of policy",
  "display_name": "policy name",
  "name": "policy-name",
  "policy": "{\"meta\":{\"policy_version\":\"1.0-ciq\"},\"subject\":{\"type\":\"UserProfile\"},\"condition\":{\"cypher\":\"MATCH (user:User)<-[:HAS]-(subject:UserProfile)-[bt:BELONGS_TO]->(org:Organization)\",\"filter\":[{\"operator\":\"AND\",\"operands\":[{\"operator\":\"=\",\"attribute\":\"subject.external_id\",\"value\":\"$profile_external_id\"},{\"operator\":\"=\",\"attribute\":\"$token.sub\",\"value\":\"$user_external_id\"},{\"operator\":\"=\",\"attribute\":\"bt.role\",\"value\":\"Admin\"}]}]},\"allowed_reads\":{\"nodes\":[\"org.external_id\",\"subject.property.name\"]},\"allowed_upserts\":{\"nodes\":{\"node_types\":[\"Event\"]},\"relationships\":{\"relationship_types\":[{\"type\":\"PART_OF\",\"source_node_label\":\"Event\",\"target_node_label\":\"Organization\"}]}}}",
  "status": "ACTIVE",
  "tags": []
}

Json to read the CIQ Policy configuration using REST.

policy_request.jsonJson
{
  "id": "your_policy_configuration_gid"
}

Step 10

Create a CIQ Query in the context of the policy to upsert an Event node.

knowledge_query.jsonJson
{
  "nodes": [
    "event",
    "event.property.title",
    "event.property.link"
  ],
  "relationships": [],
  "upsert_nodes": [
    {
      "name": "event",
      "type": "Event",
      "external_id": "$eventId",
      "properties": [
        {
          "type": "title",
          "value": "$title"
        },
        {
          "type": "link",
          "value": "$link"
        }
      ]
    }
  ],
  "upsert_relationships": [
    {
      "name": "part",
      "source": "event",
      "target": "org",
      "type": "PART_OF"
    }
  ]
}

Json to create a CIQ Query configuration using REST.

POST https://eu.api.indykite.com/configs/v1/knowledge-queriesJson
{
  "project_id": "your_project_gid",
  "description": "description of knowledge query",
  "display_name": "knowledge query name",
  "name": "knowledge-query-name",
  "policy_id": "your_policy_gid",
  "query": "{\"nodes\":[\"event\",\"event.property.title\",\"event.property.link\"],\"relationships\":[],\"upsert_nodes\":[{\"name\":\"event\",\"type\":\"Event\",\"external_id\":\"$eventId\",\"properties\":[{\"type\":\"title\",\"value\":\"$title\"},{\"type\":\"link\",\"value\":\"$link\"}]}],\"upsert_relationships\":[{\"name\":\"part\",\"source\":\"event\",\"target\":\"org\",\"type\":\"PART_OF\"}]}",
  "status": "ACTIVE"
}

Read the CIQ Query Configuration.

GET https://eu.api.indykite.com/configs/v1/knowledge-queries/{id}Json
{
  "id": "your_knowledge_query_configuration_gid"
}

Step 11

Run a CIQ Execution to upsert an Event node.

POST https://eu.api.indykite.com/contx-iq/v1/executeJson
{
  "id": "knowledge_query_gid",
  "input_params": {
    "profile_external_id": "bob",
    "user_external_id": "bob_user_external_id",
    "eventId": "event14",
    "title": "Event in the parking lot",
    "link": "https://www.example.com"
  },
  "page_token": 1
}

CIQ Execution response.

response.jsonJson
{
  "data": [
    {
      "nodes": {
        "event": {
          "Id": 24,
          "ElementId": "4:0f1c76a0-92f1-4474-80af-aa4c317e636a:24",
          "Labels": [
            "Unique",
            "Resource",
            "Event"
          ],
          "Props": {
            "create_time": "2025-06-13T16:23:53.388Z",
            "external_id": "event14",
            "id": "sYE-gBnaRQeRO6gZdHA59A",
            "type": "Event",
            "update_time": "2025-06-13T16:23:53.388Z"
          }
        },
        "event.property.link": "https://www.example.com",
        "event.property.title": "Event in the parking lot"
      }
    }
  ]
}

ikg

API Endpoints

/capture/v1/nodes
/capture/v1/relationships
/configs/v1/authorization-policies
/configs/v1/knowledge-queries
/contx-iq/v1/execute
View OpenAPI docs

Related Guides

Contx Iq Sandbox

Tags

ContX IQ Policy ContX IQ Query User Subject Role-Based Access Token Introspect Organization Events

Related Resources

ContX IQ: Query License Numbers a Person Can Access

ContX IQ Python

ContX IQ: Retrieve Payment Methods for Contracted Vehicle Users

ContX IQ Python

ContX IQ: Grant Unrestricted READ Access to a Node Category

ContX IQ Json

ContX IQ: Create Nodes and Relationships via Authorized Write Query

ContX IQ Json

ContX IQ: Upsert Relationships Between Existing Nodes

ContX IQ Json

ContX IQ: Delete Nodes and Their Relationships via Authorized Query

ContX IQ Json

ContX IQ: Loyalty Program - Retrieve Payment Method from License Plate

ContX IQ Json

ContX IQ: Connect System Nodes (_Application) to Business Data

ContX IQ Json

ContX IQ: Complete CRUD Workflow with _Application as Subject

ContX IQ Json

ContX IQ: User Consent Management - Grant and Revoke Payment Access

ContX IQ Json
