Outbound Events: Configure Kafka Event Streaming

This example configures Outbound Events with Kafka as the message broker:

What are Outbound Events?

Real-time notifications sent to external systems when changes occur in IndyKite.

Supported events:

- Configuration changes (policies, queries created/updated/deleted)

- Graph data changes (nodes/relationships created/updated/deleted)

- Authorization events (evaluations, access decisions)

Architecture:

IndyKite -> Event Sink Configuration -> Kafka Topic -> Your Consumer Application

One Event Sink per project. Multiple routes can direct different event types to different topics.

Use case

Scenario: You want to receive notifications whenever configuration changes are made in your project.

Event flow:

1. Admin creates/updates/deletes a policy

2. IndyKite detects the configuration change

3. Event Sink sends message to Kafka topic

4. Your consumer application receives the event

5. Application can: log, alert, sync, trigger workflows

Example events:

- Policy created: {type: "config.created", resource: "authorization-policy", id: "pol-123"}

- Node updated: {type: "capture.updated", node_type: "Person", id: "person-456"}

- Authorization: {type: "access.evaluated", decision: true, subject: "alice"}

Terraform registry for supported filters:

See more details

Requirements

Prerequisites:

- ServiceAccount credentials: For creating Event Sink configuration (Bearer token)

- Confluent Cloud account: With API key and cluster access

- Kafka topic: Created in your Confluent environment

Confluent requirements:

- Cluster bootstrap URL

- API Key and Secret for authentication

- Topic name for event delivery

Steps

Step 1: Create Kafka Topic on Confluent.

2. Create an Outbound Events configuration and a KBAC policy configuration.

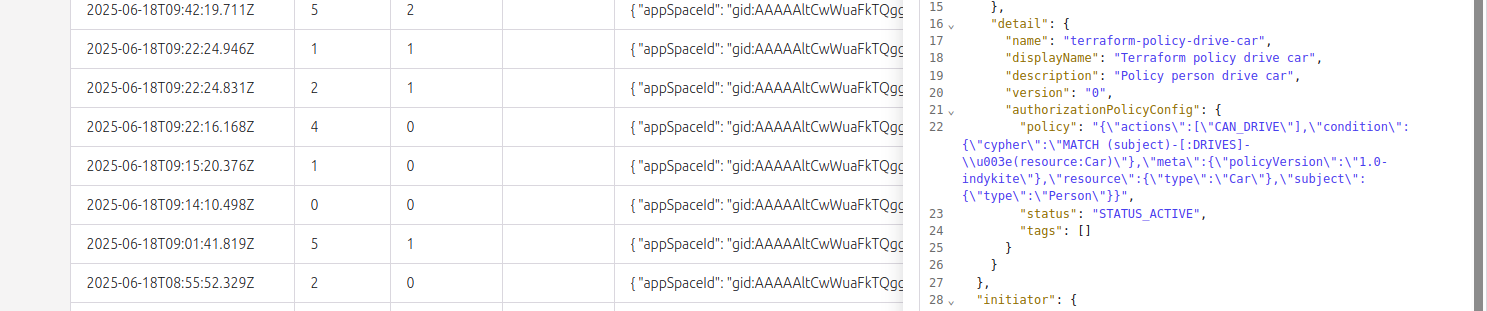

3. Check that messages are received in the topic each time a CRUD action is executed on any configuration node (including any read action on Outbound Events).

{
  "project_id": "your_project_gid",
  "description": "description of eventsink",
  "display_name": "eventsink name",
  "name": "eventsink-name",
  "providers": {
    "provider-with-kafka": {
      "kafka": {
        "brokers": [
          "http://your-destination:9092"
        ],
        "disable_tls": false,
        "tls_skip_verify": false,
        "topic": "topic_signal",
        "username": "api_key",
        "password": "api_key_secret"
      }
    }
  },
  "routes": [
    {
      "provider_id": "provider-with-kafka",
      "event_type_key_values_filter": {
        "event_type": "indykite.audit.config.*"
      },
      "stop_processing": true,
      "display_name": "Configuration Audit Events"
    }
  ]
}

{
  "meta": {
    "policy_version": "2.0-kbac"
  },
  "subject": {
    "type": "Person"
  },
  "actions": [
    "CAN_DRIVE"
  ],
  "resource": {
    "type": "Car"
  },
  "condition": {
    "cypher": "MATCH (subject:Person)-[:DRIVES]->(resource:Car)"
  }
}
