Outbound Events: Stream to Azure Service Bus

This example streams graph events to Azure Service Bus:

Azure Service Bus benefits:

- Enterprise-grade messaging with guaranteed delivery

- Topics with multiple subscriptions (fan-out pattern)

- Dead-letter queues for failed messages

- Message sessions and ordering

- Integration with Azure services

Difference from Event Grid:

- Service Bus: Reliable message queuing, enterprise patterns

- Event Grid: Lightweight event routing, serverless triggers

Use case

Scenario: Send inventory updates to multiple downstream systems reliably.

Service Bus architecture:

IndyKite -> Event Sink -> Service Bus Topic

├-> Subscription 1 (Inventory System)

├-> Subscription 2 (Analytics)

└-> Subscription 3 (Audit Log)

Event configuration:

- Event type: indykite.audit.capture.* (all CRUD operations)

- Filter: Car nodes where manufacturer="pontiac"

Benefits:

- Each subscription processes events independently

- Failed processing goes to dead-letter queue

- Guaranteed at-least-once delivery

Requirements

Prerequisites:

- ServiceAccount credentials: For configuration (Bearer token)

- AppAgent credentials: For data ingestion (X-IK-ClientKey)

- Azure Service Bus namespace with:

- Topic created

- Topic subscription configured

- Connection string available

Steps

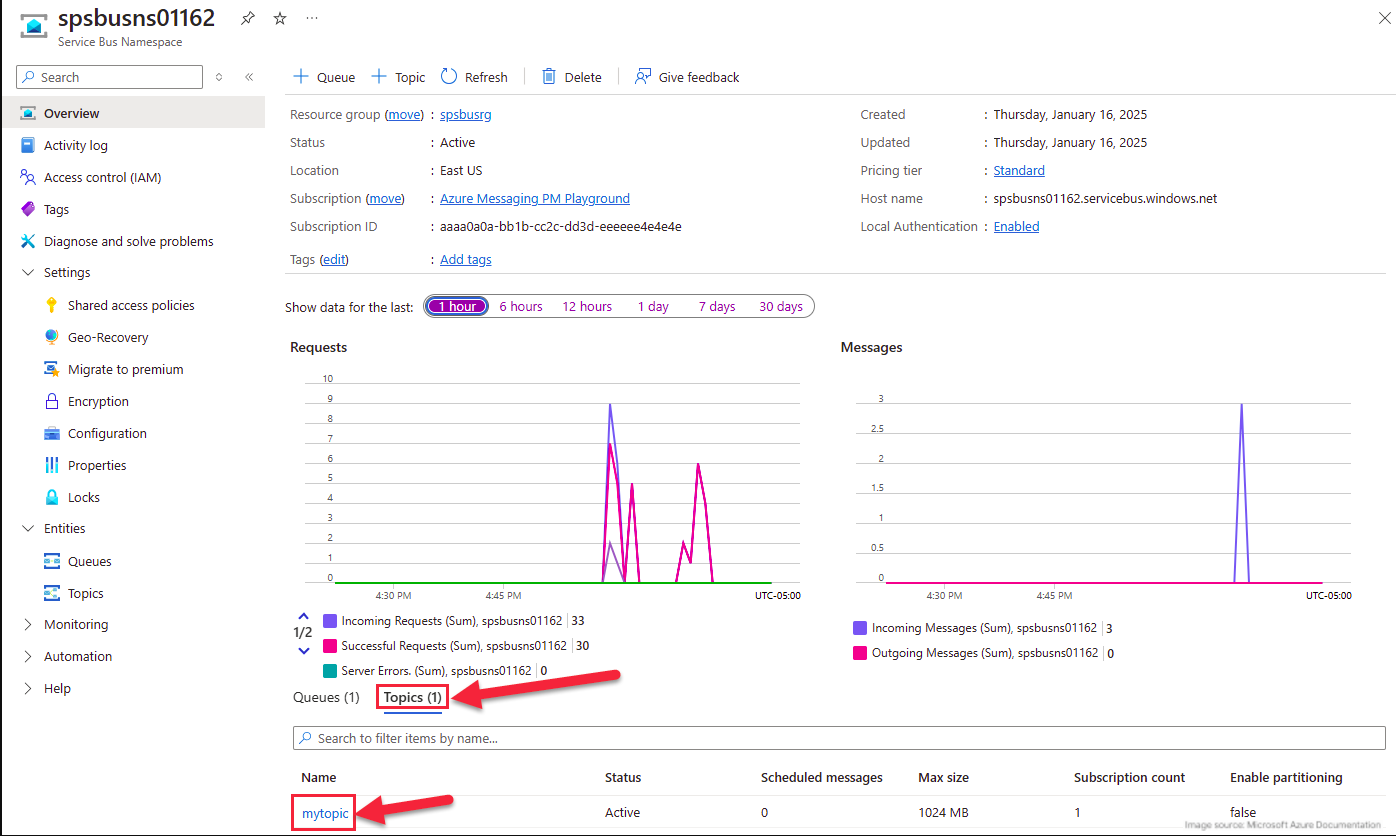

Step 1: Set Up Azure Service Bus

- Action: Create Service Bus namespace, topic, and subscription

- Note: Connection string needed for authentication

Step 2: Create Event Sink Configuration

- Authentication: ServiceAccount credential (Bearer token)

- Action: POST Event Sink with:

- Provider: Azure Service Bus

- Event type: indykite.audit.capture.*

- Filters: Car label, manufacturer="pontiac"

- Connection: Service Bus namespace and topic

- Result: Event Sink active

Step 3: Ingest Matching Nodes

- Authentication: AppAgent credential (X-IK-ClientKey)

- Action: POST Car nodes with manufacturer="pontiac"

- Result: Messages delivered to Service Bus topic

Step 4-6: Verify Message Delivery

- Add and delete matching nodes

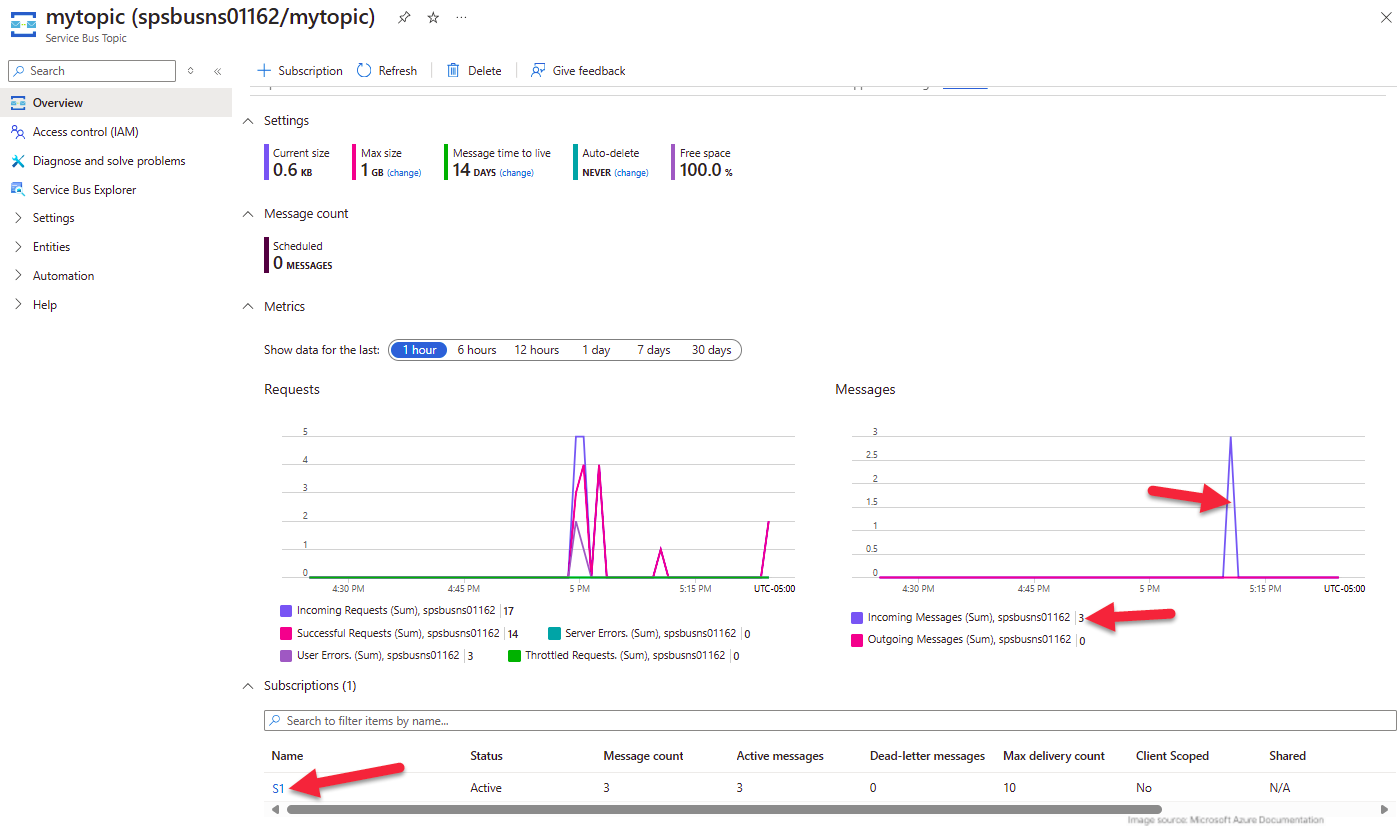

- Check Service Bus for received messages

- Verify non-matching operations don't generate messages

{
  "project_id": "your_project_gid",
  "description": "description of eventsink",
  "display_name": "eventsink name",
  "name": "eventsink-name",
  "providers": {
    "provider-with-azure-service-bus": {
      "azure_service_bus": {
        "queueOrTopicName": "test-queue",
        "connectionString": "Endpoint=sb://ik-test.servicebus.windows.net/;SharedAccessKeyName=RootManageSharedAccessKey;SharedAccessKey=a...."
      }
    }
  },
  "routes": [
    {
      "provider_id": "provider-with-azure-service-bus",
      "event_type_key_values_filter": {
        "context_key_value": [
          {
            "key": "manufacturer",
            "value": "pontiac"
          },
          {
            "key": "captureLabel",
            "value": "Car"
          }
        ],
        "event_type": "indykite.audit.capture.upsert.node"
      },
      "stop_processing": true,
      "display_name": "Configuration Audit Events"
    }
  ]
}

{
  "nodes": [
    {
      "external_id": "alice",
      "is_identity": true,
      "type": "Person",
      "properties": [
        {
          "type": "email",
          "value": "alice@email.com"
        },
        {
          "type": "given_name",
          "value": "Alice"
        },
        {
          "type": "last_name",
          "value": "Smith"
        }
      ]
    },
    {
      "external_id": "knightrider",
      "type": "Person",
      "is_identity": true,
      "properties": [
        {
          "type": "email",
          "value": "knightrider@demo.com"
        },
        {
          "type": "name",
          "value": "Michael Knight"
        }
      ]
    },
    {
      "external_id": "satchmo",
      "type": "Person",
      "is_identity": true,
      "properties": [
        {
          "type": "email",
          "value": "satchmo@demo.com"
        },
        {
          "type": "name",
          "value": "Louis Armstrong"
        }
      ]
    },
    {
      "external_id": "karel",
      "type": "Person",
      "is_identity": true,
      "properties": [
        {
          "type": "email",
          "value": "karel@demo.com"
        },
        {
          "type": "name",
          "value": "Karel Plihal"
        }
      ]
    },
    {
      "external_id": "kitt",
      "type": "Car",
      "is_identity": false,
      "properties": [
        {
          "type": "manufacturer",
          "value": "pontiac"
        },
        {
          "type": "model",
          "value": "Firebird"
        }
      ]
    },
    {
      "external_id": "cadillacv16",
      "type": "Car",
      "is_identity": false,
      "properties": [
        {
          "type": "manufacturer",
          "value": "Cadillac"
        },
        {
          "type": "model",
          "value": "V-16"
        }
      ]
    },
    {
      "external_id": "harmonika",
      "type": "Bus",
      "is_identity": false,
      "properties": [
        {
          "type": "manufacturer",
          "value": "Ikarus"
        },
        {
          "type": "model",
          "value": "280"
        }
      ]
    },
    {
      "external_id": "listek",
      "type": "Ticket",
      "is_identity": false
    },
    {
      "external_id": "airbook-xyz",
      "type": "Laptop",
      "is_identity": false
    }
  ]
}

{
  "nodes": [
    {
      "external_id": "kitten",
      "type": "Car",
      "is_identity": false,
      "properties": [
        {
          "type": "manufacturer",
          "value": "pontiac"
        },
        {
          "type": "model",
          "value": "Bonneville"
        }
      ]
    },
    {
      "external_id": "kitty",
      "type": "Car",
      "is_identity": false,
      "properties": [
        {
          "type": "manufacturer",
          "value": "pontiac"
        },
        {
          "type": "model",
          "value": "Catalina"
        }
      ]
    }
  ]
}
